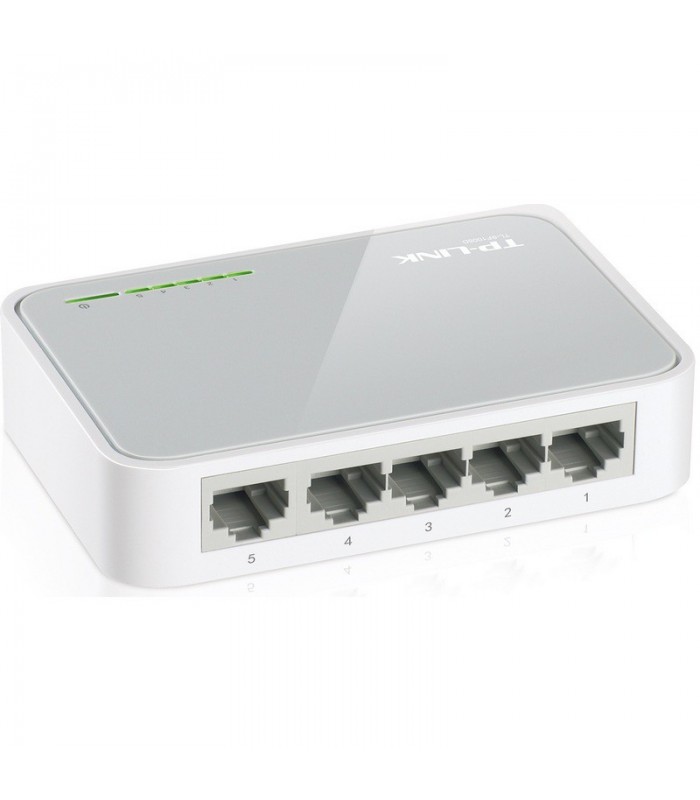

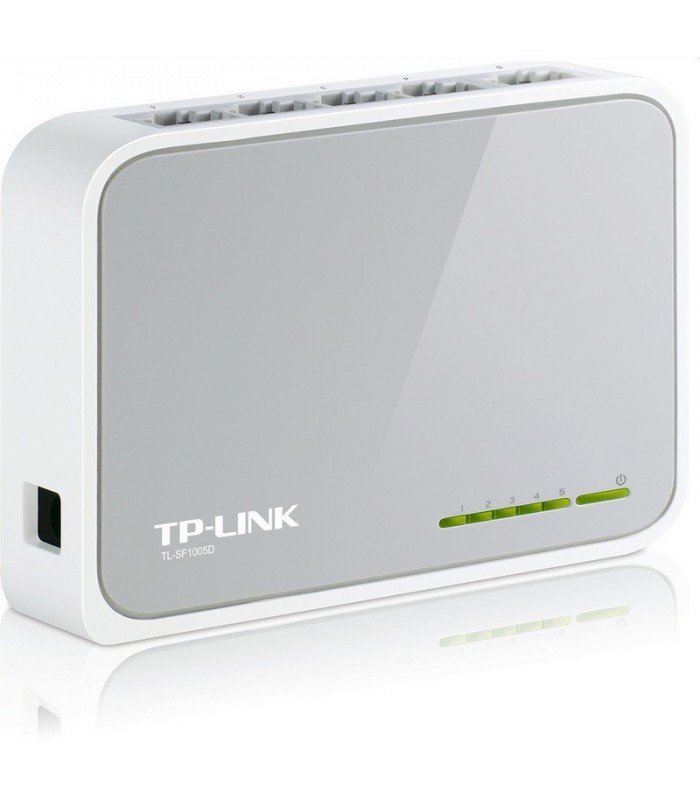

TP-LINK TL-SF1005D Switch 5 puertos 10/100

Standards and Protocols

 IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP

Basic Function

 Wire-speed Performance

 MAC Address Auto-Learning and Auto-aging

 IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Backbound Bandwidth

 1Gbps

MAC Address Table

 1k

Forwarding Rate

 10BASE-T: 14880pps/port

 100BASE-TX: 148800pps/port

Transmission Method

 Store-and-Forward

Ports

 5 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media

 10Base-T: UTP category 3, 4, 5 cable (maximum 100m)

 EIA/TIA-568 100Ù STP (maximum 100m)

 100Base-Tx: UTP category 5, 5e cable (maximum 100m)

 EIA/TIA-568 100Ù STP (maximum 100m)

LED Indicators

 Power, Link/Act (1, 2, 3, 4, 5)

Safety & Emission

 FCC, CE

Dimensions (W*D*H)

 5.5*3.4*1.1 in. (140*87*27.5 mm)

Environment

 Operating Temperature: 0?~40? (32?~104?)
  Storage Temperature: -40?~70? (-40?~158?)
  Operating Humidity: 10%~90% non-condensing
  Storage Humidity: 5%~90% non-condensing

Power

 External Power Adapter
